High Efficiency Industrial Air Scrubber System Soot Exhaust Gas Treatment

Fume Exhaust Gas Treatment Equipment Soot Exhaust Gas Treatment System

7.6 soot exhaust gas treatment system

1) Equipment name: fume exhaust gas treatment equipment

2) Use occasions: It is mainly used in the workshops that produce soot and dust in the processes of welding, polishing, cutting, grinding, etc., as well as the recovery of rare metals and valuable materials. Applicable to arc welding, carbon dioxide protection welding, MAG welding, carbon arc gas welding, gas fusion cutting, special welding and other workplaces that generate smoke. Petrochemical industry, chemical and pharmaceutical industry, municipal waste industry, textile printing and dyeing, leather, food and other industries

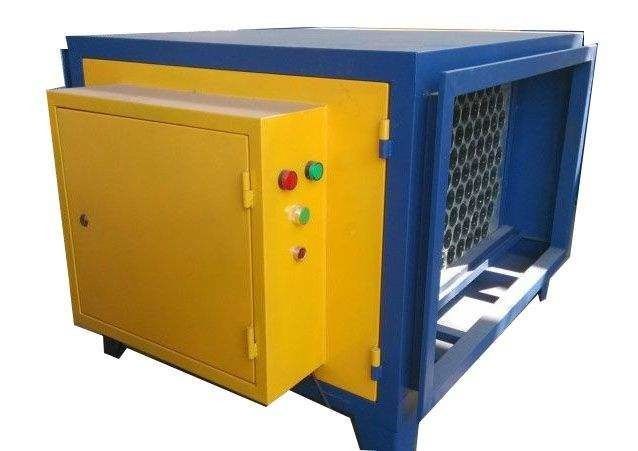

3) Equipment picture:

Equipment diagram:

Process flow chart:

Process description:

After the exhaust gas is treated by the low-temperature plasma processing equipment, a reaction buffer of not less than 20 meters is required to pass through, and the ozone generated by the low-temperature plasma processing equipment is sufficiently reacted with the residual components in the exhaust gas to achieve an optimum treatment effect.

Installation site picture:

Process flow chart:

Advantages:

high purification efficiency, can simultaneously purify a variety of pollutants, equipment with fire performance using overload, leakage, open door and power failure automatic protection. The product is modular in design, easy to install and easy to maintain. The device is small in size, compact in structure, mature and safe in process. Low equipment investment, low operating cost, high purification efficiency, no secondary pollution, beautiful appearance, low wind resistance, low noise, strong corrosion resistance and long service life. Strong corrosion resistance and long service life.

Supply (cooperation) mode and delivery cycle

1: Determine the usage scenario.

2: Analyze the quality of contaminated water (if necessary, do laboratory analysis)

3: Determine the treatment process.

4: The supplier forecasts the price duration and governance objectives of the equipment or system.

5: The supplier and the buyer negotiate the price duration and the governance objectives, negotiate the contract, and sign the contract and pay the supplier prepayment.

6: After the equipment is produced and paid by the buyer and its agent, the payment will be made.

7: The supplier rushed to the place of use of the buyer for installation instructions and commissioning.

8: System training for equipment use and maintenance.
