Dust Containing Industrial Air Scrubber System Plastic Factories High Efficiency

Dust Containing Exhaust Gas Purification Equipment Plastic Factories

7, waste gas dust treatment

7.1 Dust-containing exhaust gas purification equipment

1) Equipment name: dusty exhaust gas purification equipment

2) Use occasions: It is widely used in chemical plants, electronics factories, paint factories, automobile factories, paint factories, petrochemical industries, furniture factories, food factories, rubber factories, plastic factories and other industries.

3) Equipment picture:

Equipment diagram:

Description of equipment principle:

The gas purifying method of the pulse bag type dust collector is an external filter type, and the dust-containing gas enters each unit filter chamber by the draft tube. Due to the design, the vertical distance of the bottom of the filter bag from the upper opening of the air inlet port is sufficient and reasonable airflow through the appropriate diversion flow.

And the natural flow direction distribution, the air distribution in the whole filtering chamber is uniform, the particle dust in the dusty gas is directly separated into the ash hopper after being separated by natural sedimentation, and the remaining dust is guided by the diversion system, and enters the middle tank filtering zone with the airflow. Adsorbed on the outer surface of the filter bag. The filtered clean gas permeating filter bag is discharged through the upper tank and the exhaust duct.

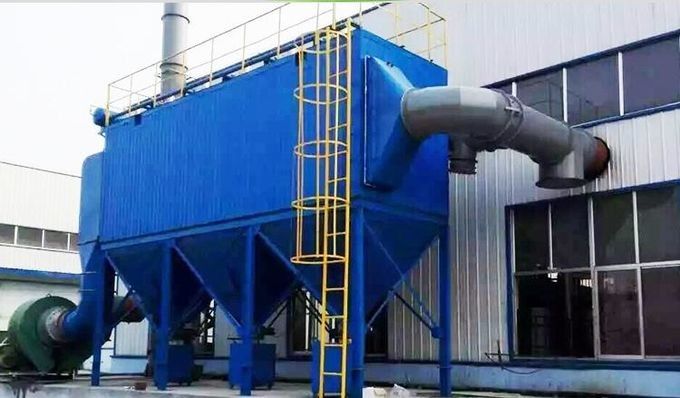

Installation site picture:

Advantages:

The dust removal power is very high, usually up to 99%, and can collect fine dust particles with a particle size larger than 0.3 microns, which can satisfy the strict environmental protection requirements. The dust-removing skeleton function is stable, and the bag type dust collector is a dry type purification device.

It does not need water, so there is no problem of sewage disposal or mud disposal, and the collected dust is simply recycled. The use of sensitivity, the layout is relatively simple, the operation is relatively stable, the initial capital is less, and the maintenance is convenient.
